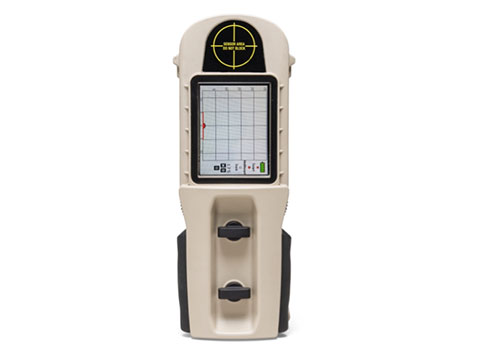

A Lightweight handheld radar system designed to
detect people through walls and structural barriers made from
concrete, brick, plaster with wire mesh, adobe, and other common building materials within seconds, Range-R 2D informs the operator on the presence of moving and stationary persons, indicating the range (distance) and the position (bearing) of single
and multiple locations. This vital intelligence helps assure a safe and successful operation for Military, Law
Enforcement, and Search & Rescue operations.
In real time, moving persons and stationary (just breathing) are located by the Range-R 2Ds
high level
Doppler Radar with very low false alarm responses. The simple user interface, detection algorithms, and rear blocking
radar receiver offer the highest level performing system.
Hostage situations, fugitive search, natural disasters,
and burning buildings are just a few scenarios where Range-R 2D’s through-wall technology can be utilized to
locate persons hidden from view - without placing the lives of emergency responders in unnecessary danger. It
enables Police, Military Special Operations, Firefighters, VIP Security, and Search & Rescue teams to efficiently
and effectively allocate their time and resources when rapid decisions must be made. The system is designed to be operated from a breach position or a standoff location. Range-R 2D has a simple to use interface and a rotational, easy-to-read display.
APPLICATIONS:
Hostage Rescue
Tactical Entry
Search & Rescue
Breaching Operations
Stowaway Detection
VIP Protection
- SFCW Unique Features
- Dimensions: 10” x 3.6” x 3.9” (25.4cm x 9.14cm x 9.9cm)
- Weight: 3 Lbs (1.36 Kg)
- Detection range: 100 ft+ (30+ meters)
- Field of View: 180/90 degrees azimuth and elevation
- Resolution: 15.75” (40cm)
- Waveform type: Stepped-frequency continuous wave (SFCW)
- Bandwidth: 200 discrete 2 MHz steps
- Frequency: 3.1 - 3.5 GHz
- Output power: 32 mW (+15 dBm)
- Power source: AA batteries, rechargeable Alkaline or Li Ion
