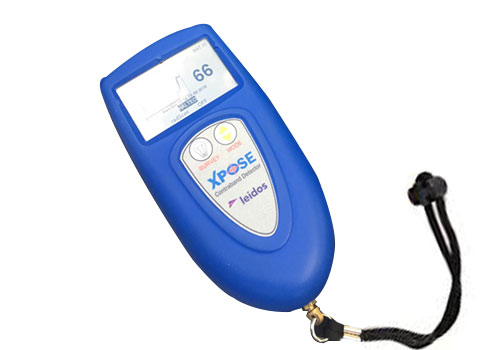

The Xpose contraband
detector is a compact, lightweight, rugged, handheld density meter designed to aid law enforcement officials with the detection of hidden objects or compartments.
Frequently, contraband is covertly stored in inaccessible areas, such as car panels, tires, bulkheads, etc., where direct observation is not possible. Xpose gives an indication of contraband concealed in hidden locations. It works by measuring changes in density across the target area. Unexpected changes indicates the presence of hidden objects or compartments.
Xpose incorporates a large
thallium-activated cesium iodide (CsI(TI)) detector for better penetration and faster indication of “hits” triggered by an abrupt change in density.
The ruggedized Xpose unit has been designed with an ergonomic grip; anti-scratch detection surface; integrated safety wrist strap; and a large, easy-to-read, illuminated graphical display. It’s lightweight (more than 30 percent lighter than other contraband detectors) and designed for ambidextrous operation.
Xpose has two main modes of operation-Survey, for indication of radiation sources in the vicinity , and Inspect, for contraband detection.
Xpose flexible readout options include a wireless remote display for ease of use in tight inspection locations and a USB port for connection with a computer.
SURVEY MODE
In survey mode, Xpose acts as a radiation survey meter to locate sources of radioactive material. Xpose provides real time, local radiation rate and count. Results are shown in graphical and numeric format.
INSPECT MODE
In Inspect mode, Xpose acts a density meter to locate contraband. Xpose incorporates a large CsI
(TI) detector for faster scanning improved penetration, and quicker indication of “hits” triggered by an abrupt change in density. The operator can select to display readings in graphical or numerical format and with or without alarm. There is also an option to display the current reading with background zeroed out.
CALIBRATION
Xpose uses a common, built in calibration block that enables universal calibration across similar Xpose Contraband Detector models. After calibration , all units will read +/- 2 percent of each other. The calibration automatically compensates for decay of the source and aging of internal components. The calibration routine runs in under 30 seconds
-
Large detector for faster response and increased penetration
-
2.5-inch LCD display with density-time graphing
-
Ergonomic, one-hand, one-touch operation
-
USB or wireless connection to remote graphical display
-
3.5mm stereo headset jack for use in noisy environments or stealth operation
-
Ruggedized for use in industrial and outdoor environments
-
Lightweight, compact design
-
Built in Test and Self-calibration
